Text Rendering

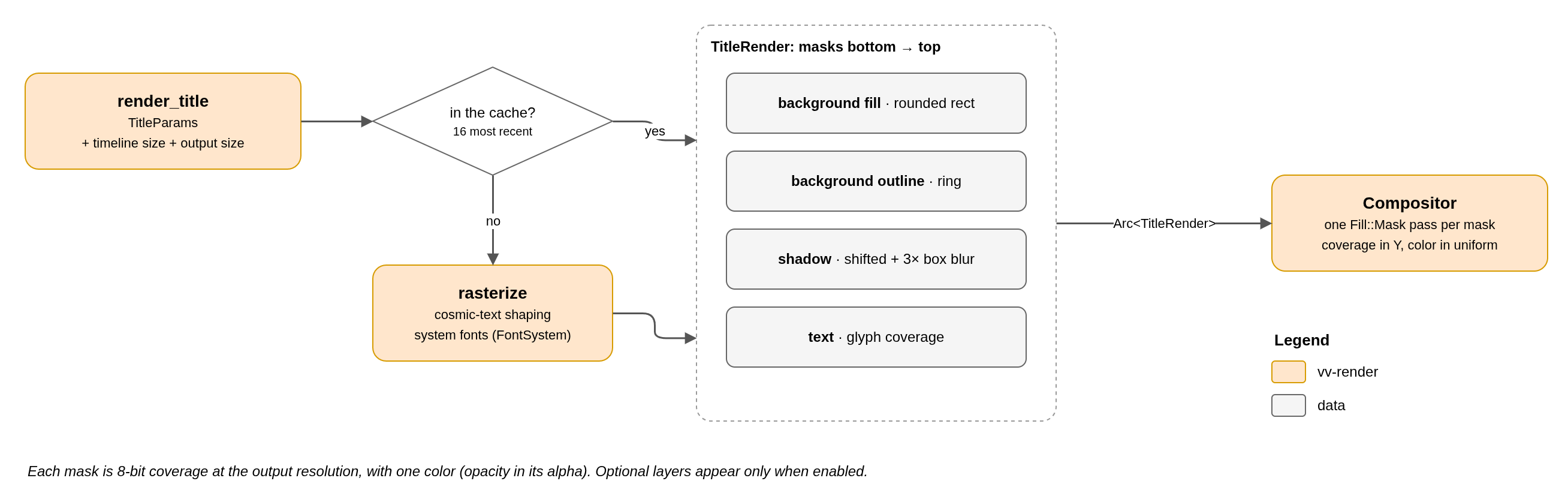

Titles (ClipSource::Text) are rasterized on the CPU by vv-render/src/text.rs with cosmic-text, then composed on the GPU like any other layer. Every element of a title has a single color, so an 8-bit coverage mask per element is all the compositor needs.
Details
| Aspect | Behaviour |
|---|---|
| Resolution | Masks are rasterized at the output size; font size, position and offsets are given in timeline pixels and scaled, so the preview and the export are sharp at their own resolution. |
| Cache | The last 16 renders, keyed by (params, timeline size, output size). A still title costs one rasterization. |
| Fonts | System fonts through cosmic-text's FontSystem. Scanning them is slow, so warm_up runs on a thread at startup. |
| Background | Rounded rectangle with antialiased edges from the signed distance; optional inner outline ring. Sized around the text block unless an explicit width/height is set. |
| Shadow | The text mask shifted by the offset and softened by three box blurs (approximating a Gaussian). |
| Compositing | Fill::Mask: the mask goes in the Y plane as coverage, the color in the uniform; each mask is its own pass, so blend modes apply to each. |
title_metrics exposes the text block and background padding separately for the OTIO export, because DaVinci Resolve shapes text its own way and has no "around the text" background.
